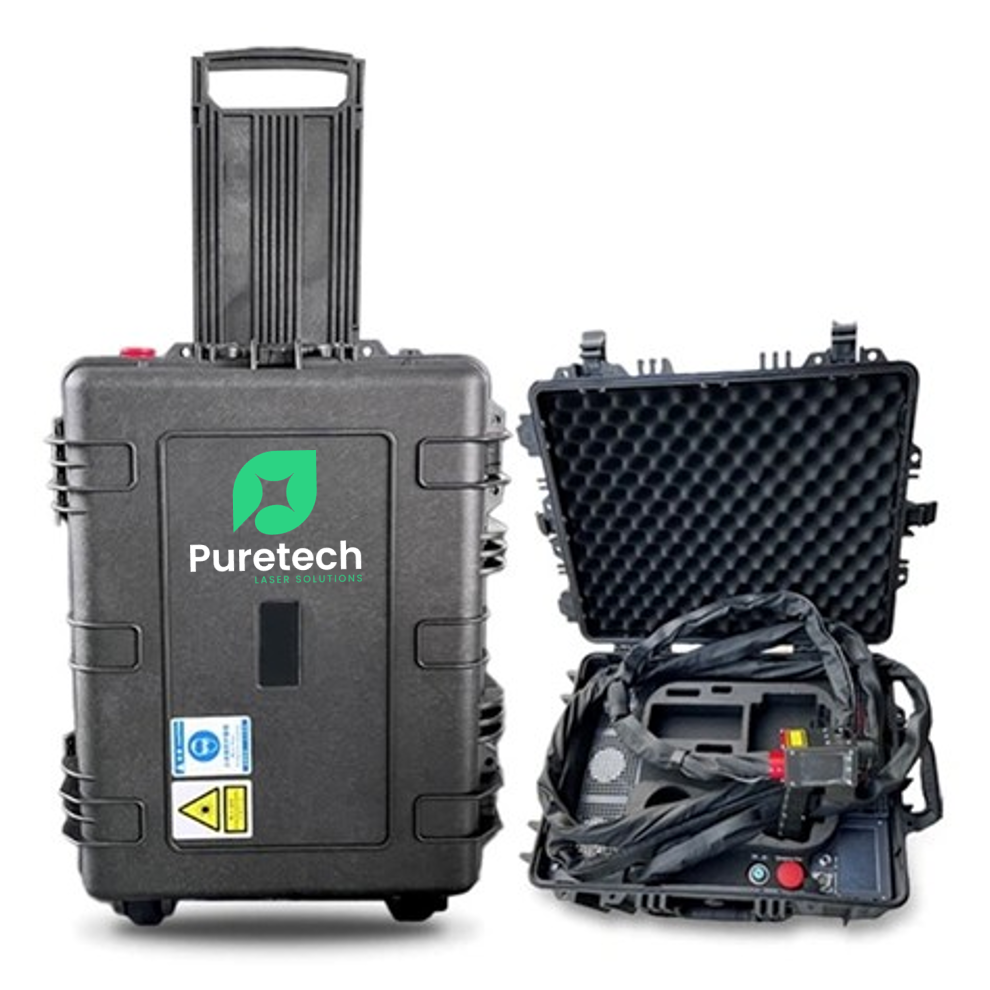

Air-Cooled Portable Laser
Pulse Case 300W/500W
This compact, portable pulse laser system offers a lightweight, ergonomic design that’s easy to transport and operate. With adjustable settings, it’s well-suited for removing rust, paint, stain, oil, dye, and other contaminants from a wide variety of surfaces.
A built-in precision control setting minimizes edge intensity at the end of each pass, making it especially effective for cleaning injection molds and tooling with minimal visible overlap or transfer marks that could impact the finished product.
Starting from $12,000 – $18,650
Integrated Air-Cooled System
Built-in air-cooling system keeps the unit lightweight, portable, and easier to maintain
Dual Touchscreen Control Panels
Intuitive touchscreens make it easy to set parameters, scan patterns, and power levels

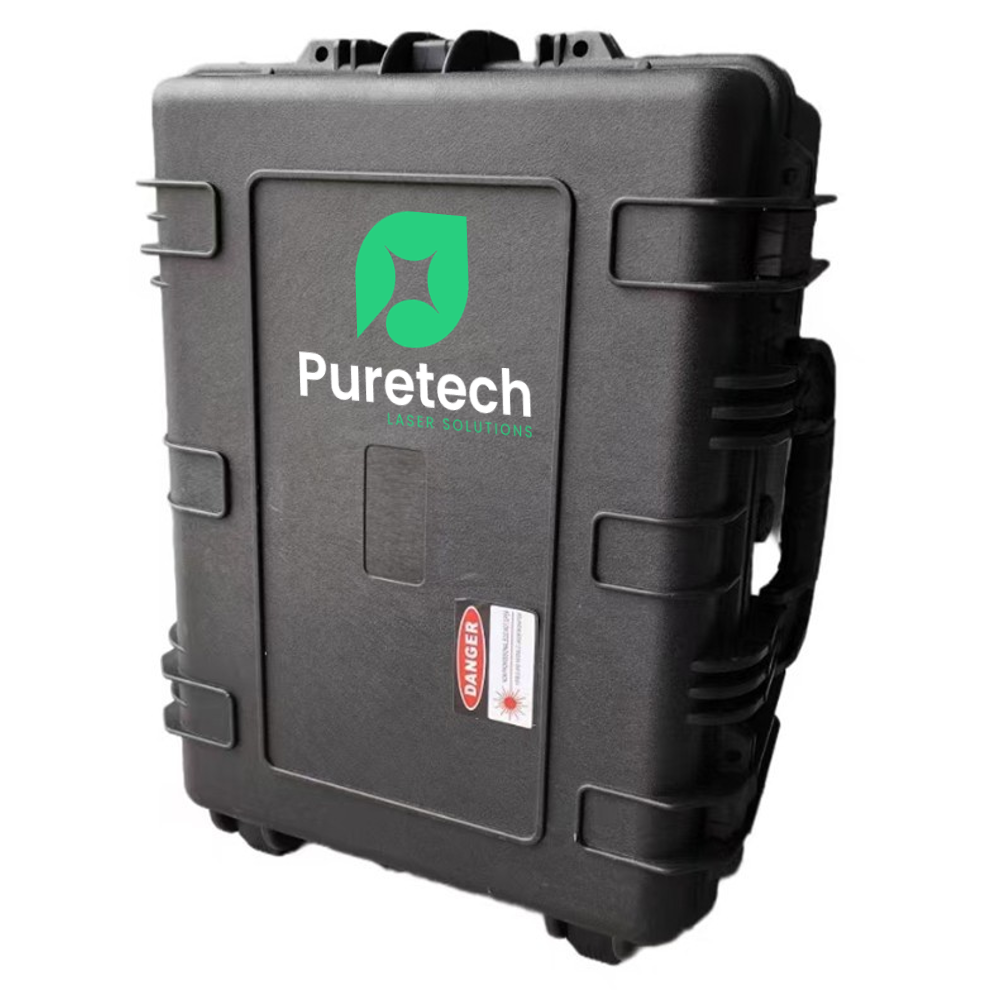

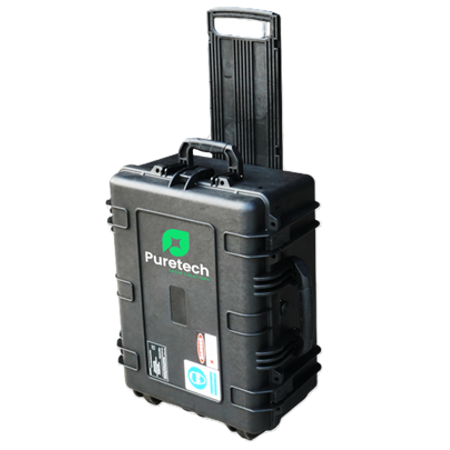

Lightweight Portable Case

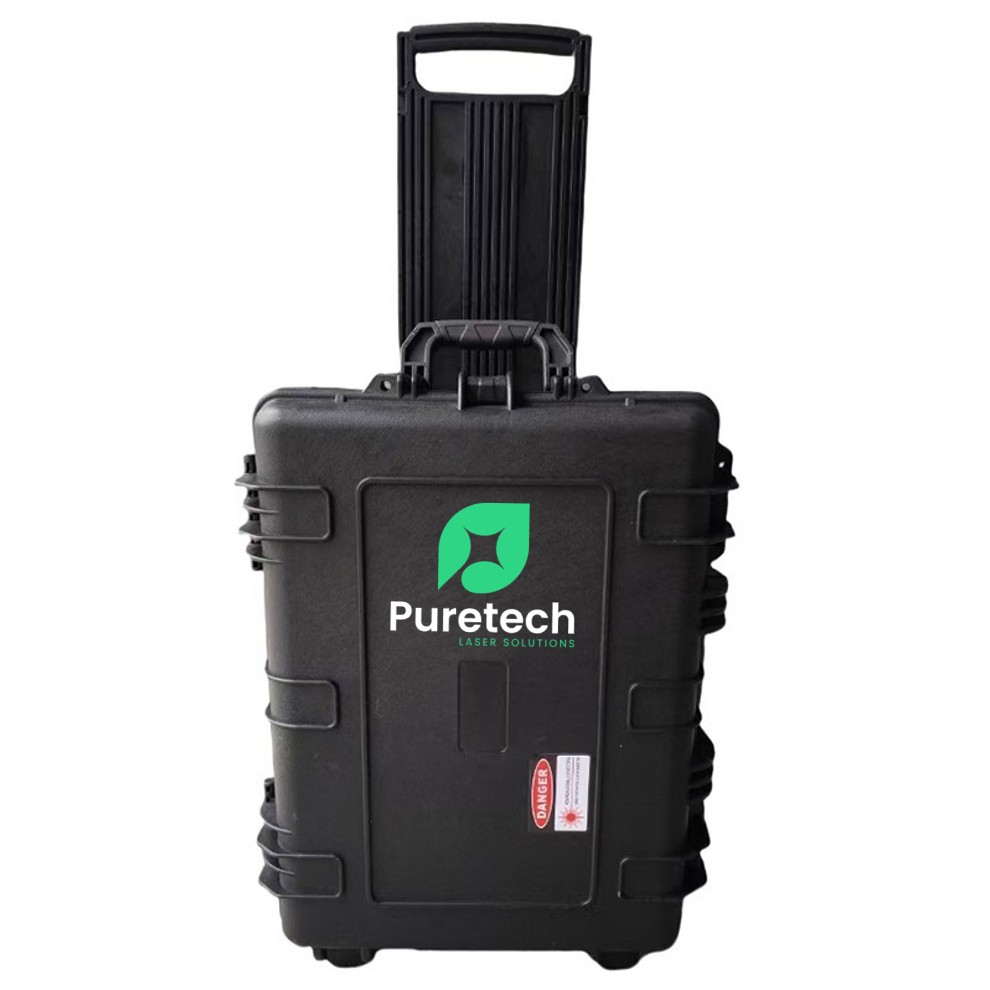

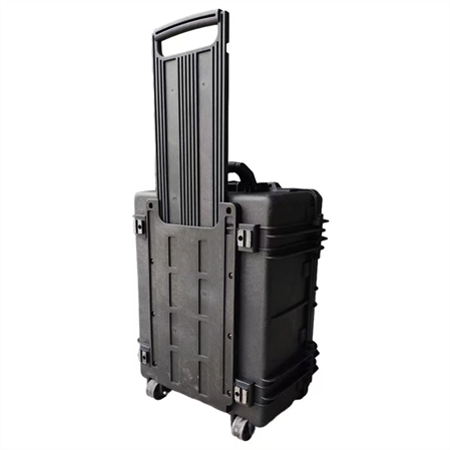

Compact design with telescoping handle for easy maneuvering, transportation, and storage
Built-in Process Library
Save and recall common settings — quick and easy setup for repeat jobs with minimal operator training
Edge Coefficient & Extinction Delay
Edge-smoothing control helps prevent overburn reducing heat buildup and marking at scan edges

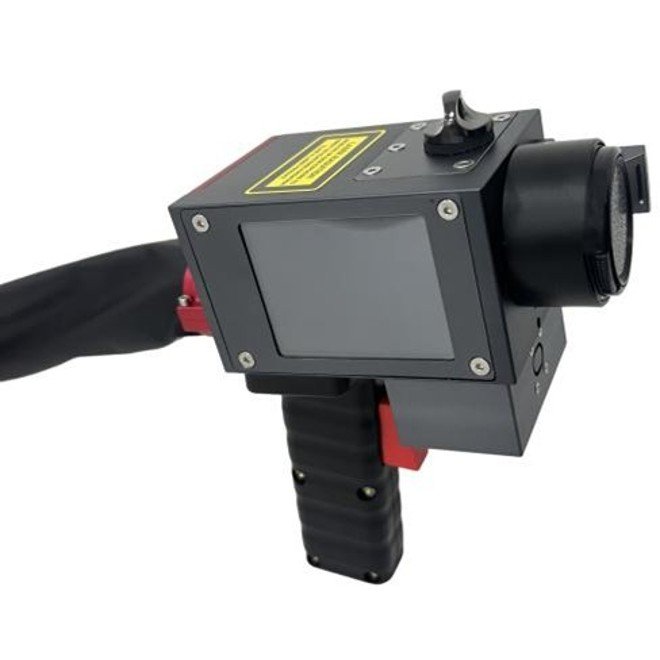

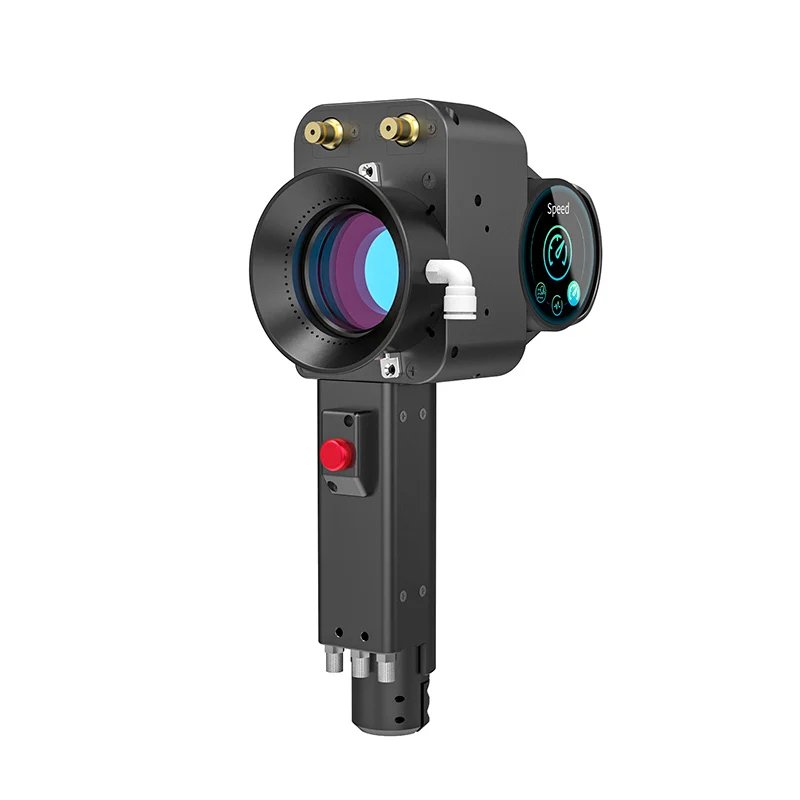

Ergonomic Handheld Head
At just under 3/3.5 lbs, the handheld design reduces fatigue — with built-in red-light guidance for alignment
High Power Pulse Cleaning
With peak energy outputs up to 15mJ, handles tough jobs with ease — even on heat-sensitive surfaces
9+ Dual-Axis Scan Patterns
Includes 9+ scan modes for cleaning flat, curved, or detailed surface geometries (5+mJ only)
Technical Specifications
Pulse Case: PPW300C | PPW500C
Laser & Optics
- Laser Type: Pulse wave
- Laser Power: 300W/500W
- Pulse Energy: 1.5-50mJ, varies by model
- Beam Profile: Gaussian/top-hat
- Wavelength: 1064nm
- Pulse Duration: 13-500 ns
Laser Operation & Control
- Scan Modes: Dual axis, 9+ patterns
- Scan Area: 0-100mm (0-3.9 in), adjustable
- Scan Speed: Up to 30000 mm/s, varies
- Repetition Rate: 1-4000 kHz, adjustable
- Power Adjustment Range: 0-100%
Power & Air Requirements
- Power: Single-phase 110/220V ±10%, 50/60Hz
- Power Consumption: <1.1/<3 kW
- Cooling System: Air-cooled
- Supply Air Pressure: 75-85 psi compressed
Dimensions & Weight
- Machine Dimensions: 23.2×10.5×19.2 in
- Machine Weight: 66.1/77.2 lb
- Cleaning Head Weight: <3/3.5 lb
- Fiber Cable Length: 5/10m (16.4/32.8 ft)
Included Components

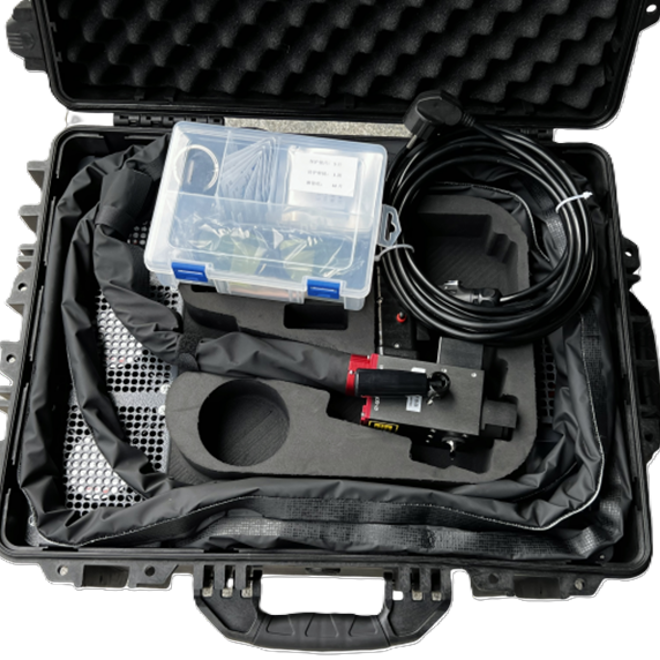

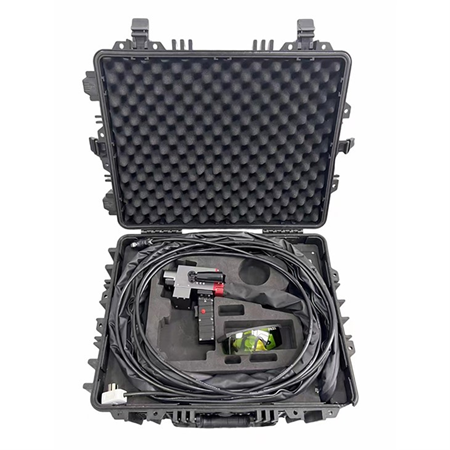

Each system comes fully equipped with the following standard components: cleaning head, fiber cable, power cord, focal lens, protective lenses, and safety glasses.
Warranty Coverage
1-Year Comprehensive (2 years laser source)
Our comprehensive warranty reflects our commitment to delivering high-quality laser equipment and responsive support. We stand behind the integrity of our machines and aim to resolve any covered issues as quickly and smoothly as possible.
Regulatory Standards
Laser Safety Classification: Class IV
FDA & CE Compliant: All machines comply with US regulations for laser equipment safety, and meet EEA safety, health, and environmental standards.
