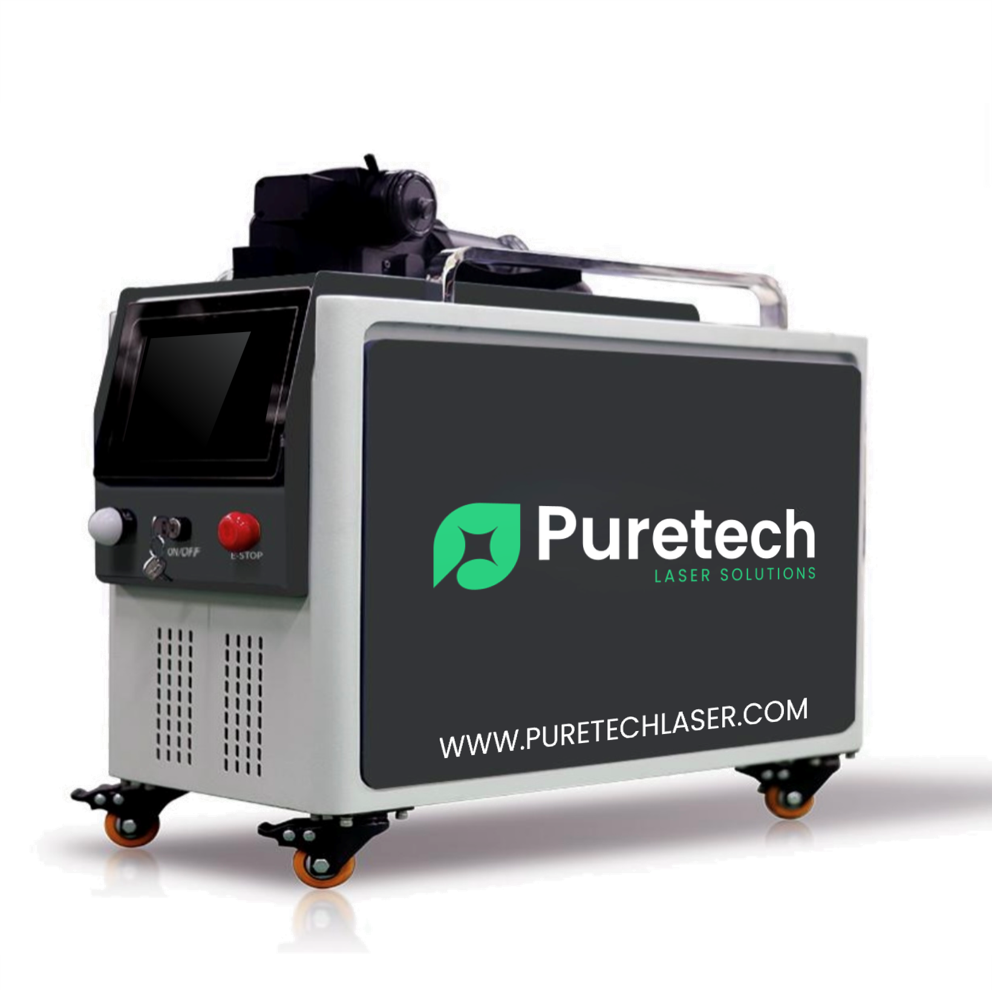

Air-Cooled Laser System
Pulse Mini 200W/300W
This pulse wave laser system delivers powerful precision in a compact cabinet-style frame. Designed for consistent performance and minimal maintenance, it features an air-cooled chassis, intuitive touchscreen control, and a lightweight handheld head for comfortable operation.
Ideal for removing rust, paint, stain, weld residue, and surface contaminants from a wide range of substrates.
Integrated Air-Cooled System
Built-in air-cooling system keeps the unit lightweight, portable, and easier to maintain
Touchscreen Control Panel
Intuitive 7-inch touchscreen makes it easy to set parameters, scan patterns, and power levels
Portable Cabinet Frame
Mounted on lockable wheels with a compact footprint — easy to maneuver and transport
Built-in Process Library
Save and recall common settings — quick and easy setup for repeat jobs with minimal operator training
Triple-Stage Drying System
Integrated 3-tank air filtration protects optics and improves performance in humid conditions

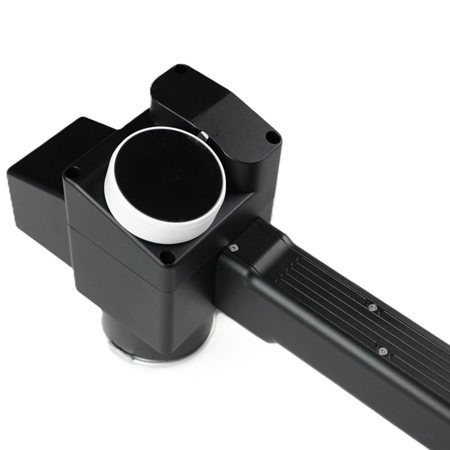

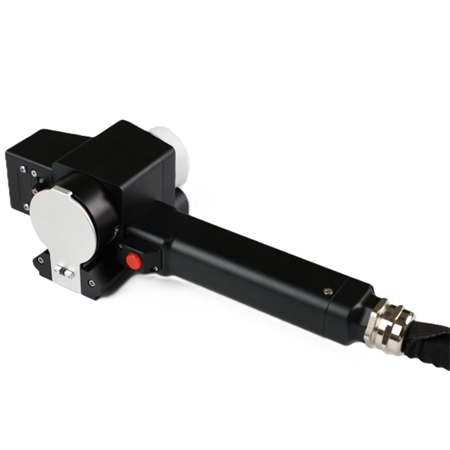

Ergonomic Handheld Head
At just over 2 lbs, the handheld design reduces fatigue — with built-in red-light guidance for alignment
High Power Pulse Cleaning
With peak energy outputs up to 15mJ, handles tough jobs with ease — even on heat-sensitive surfaces
12 Dual-Axis Scan Patterns
Includes 12 scan modes for cleaning flat, curved, or detailed surface geometries (5/15mJ only)
Technical Specifications
Pulse Mini: PPW200A | PPW 300A
Laser & Optics
- Laser Type: Pulse wave
- Laser Power: 200W/300W
- Pulse Energy: 2/5/15mJ (15mJ 300W only)
- Beam Profile: Gaussian (single), top-hat (dual)
- Wavelength: 1064nm
Laser Operation & Control
- Scan Modes: Dual axis, 12 patterns (5/15mJ only)
- Scan Area: 5-114mm (0.2–4.5 in), adjustable
- Scan Speed: 1-14 m/s
- Repetition Rate: 20-4000 kHz, adjustable
- Power Adjustment Range: 10-100%
- External Control: Remote capable
Power & Air Requirements
- Power: Single-phase 110/220V ±10%, 50/60Hz
- Power Consumption: <2 kW @ 77°F
- Cooling System: Air-cooled
- Supply Air Pressure: 60–85 psi compressed air
Dimensions & Weight
- Machine Dimensions (L×W×H): 23.2×10.5×19.2 in
- Machine Weight: 79.4 lb
- Cleaning Head Weight: 2.4 lb
- Fiber Optic Cable Length: 5m (16.4 ft)
Included Components
Each system comes fully equipped with the following standard components: cleaning head, fiber cable, power cord, focal lens, protective lenses, safety glasses, and external control cable.
Warranty Coverage
2-Year Comprehensive (1 year laser source)
Our comprehensive warranty reflects our commitment to delivering high-quality laser equipment and responsive support. We stand behind the integrity of our machines and aim to resolve any covered issues as quickly and smoothly as possible.
Regulatory Standards
Laser Safety Classification: Class IV
FDA & CE Compliant: All machines comply with US regulations for laser equipment safety, and meet EEA safety, health, and environmental standards.
Scan Patterns
Line
Spiral
Texture
Ring
Random
Triangle
X Mode
Rectangle
Shapes
Reseau
Wave
Rect Block
Get the Right Laser for Your Needs
Whether you know exactly what you're looking for or need help deciding, we're here to guide you. Request a quote or get expert input on the best machine for your application.
