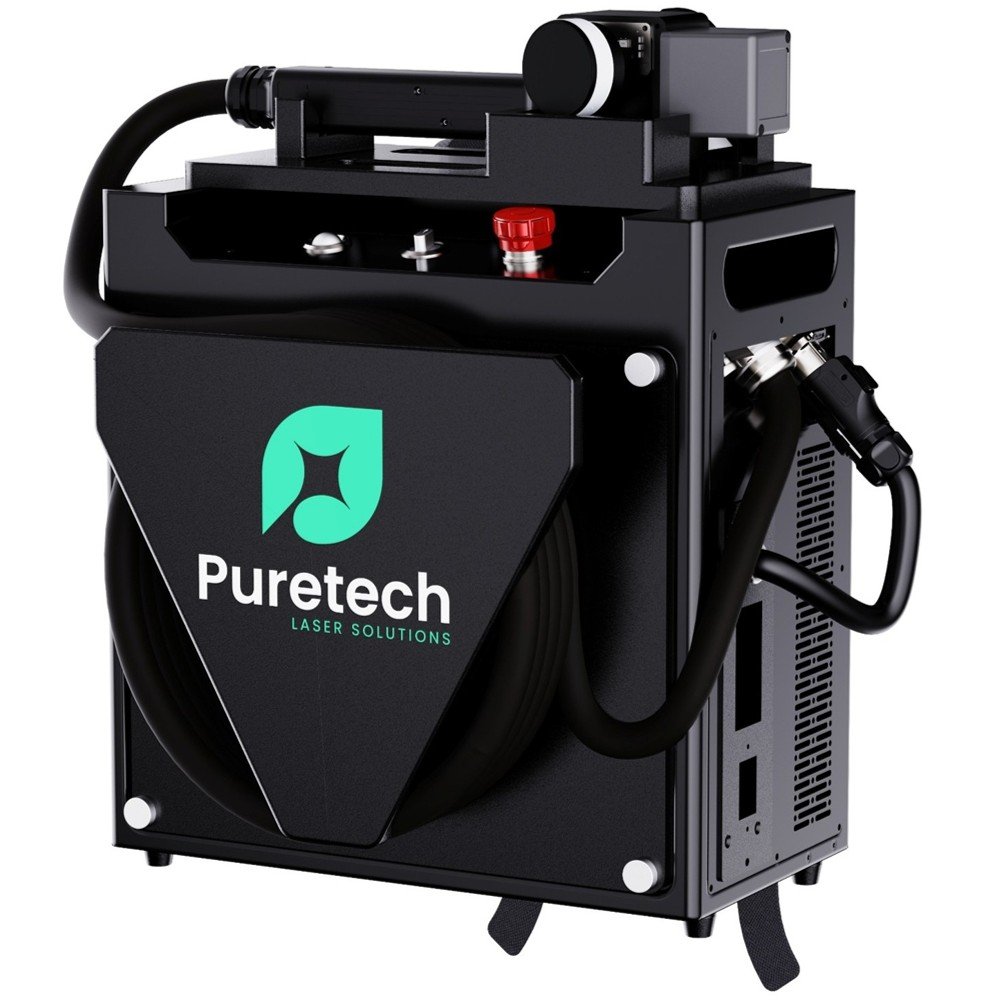

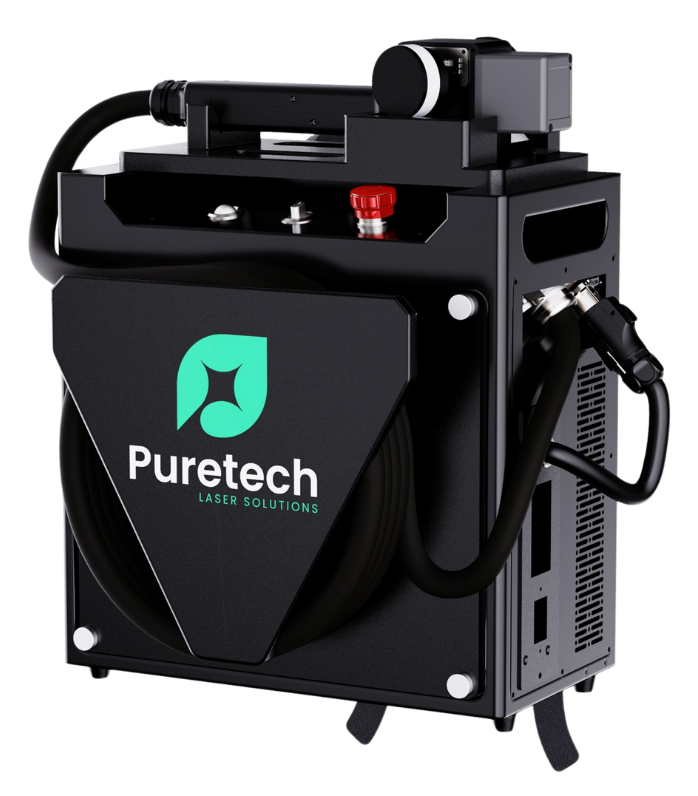

Air-Cooled Backpack Laser
Pulse Pack 200W
This ultra-portable pulse laser system is built for mobility without sacrificing performance. Housed in a durable backpack-style case, it delivers power and precision where you need it without sacrificing control or performance.
Ideal for rust, paint, and residue removal in hard-to-reach areas or field environments where traditional equipment isn’t practical.
Integrated Air-Cooled System
Built-in air-cooling system keeps the unit lightweight, portable, and easier to maintain
Touchscreen Control Panel
Intuitive 7-inch touchscreen makes it easy to set parameters, scan patterns, and power levels
Portable Cabinet Frame
Mounted on lockable wheels with a compact footprint — easy to maneuver and transport
Built-in Process Library
Save and recall common settings — quick and easy setup for repeat jobs with minimal operator training
Triple-Stage Drying System
Integrated 3-tank air filtration protects optics and improves performance in humid conditions
Ergonomic Handheld Head
At just over 2 lbs, the handheld design reduces fatigue — with built-in red-light guidance for alignment
High Power Pulse Cleaning
With 500W of laser power, handles tough jobs with ease — even on heat-sensitive surfaces
12 Dual-Axis Scan Patterns
Includes 12 scan modes for cleaning flat, curved, or detailed surface geometries (5/15mJ only)
Technical Specifications
Pulse Pack: PPW200P
Laser & Optics
- Laser Type: Pulse wave
- Laser Power: 500W
- Pulse Energy: 2mJ or 5mJ
- Beam Profile: Gaussian (single), top-hat (dual)
- Wavelength: 1064nm
Laser Operation & Control
- Scan Modes: Dual axis, 12 patterns (5mJ only)
- Scan Area: 5-116mm (0.2-4.6 in), adjustable
- Repetition Rate: 5-200 kHz, adjustable
- Power Adjustment Range: 10-100%
- External Control: Remote capable
Power & Air Requirements
- Power Supply: Lithium battery pack or adapter
- Adapter Input: Single-phase 110/220V, 50/60Hz
- Power Consumption: <1000W @ 77°F
- Cooling System: Air-cooled
- Supply Air Pressure: 60-85 psi compressed air
- Battery Life: 40 min
Dimensions & Weight
- Machine Dimensions (L×W×H): 23.2×10.5×19.2 in
- Machine Weight: 33.1 lb (42.9 lb with battery)
- Cleaning Head Weight: 2.4 lb
- Fiber Cable Length: 5m (16.4 ft)
Included Components
Each system comes fully equipped with the following standard components: cleaning head, fiber cable, battery pack, battery charger, power adapter, focal lens, protective lenses, safety glasses, and external control cable.
Warranty Coverage
1-Year Comprehensive
Our comprehensive warranty reflects our commitment to delivering high-quality laser equipment and responsive support. We stand behind the integrity of our machines and aim to resolve any covered issues as quickly and smoothly as possible.
Regulatory Standards
Laser Safety Classification: Class IV
FDA & CE Compliant: All machines comply with US regulations for laser equipment safety, and meet EEA safety, health, and environmental standards.
Scan Patterns

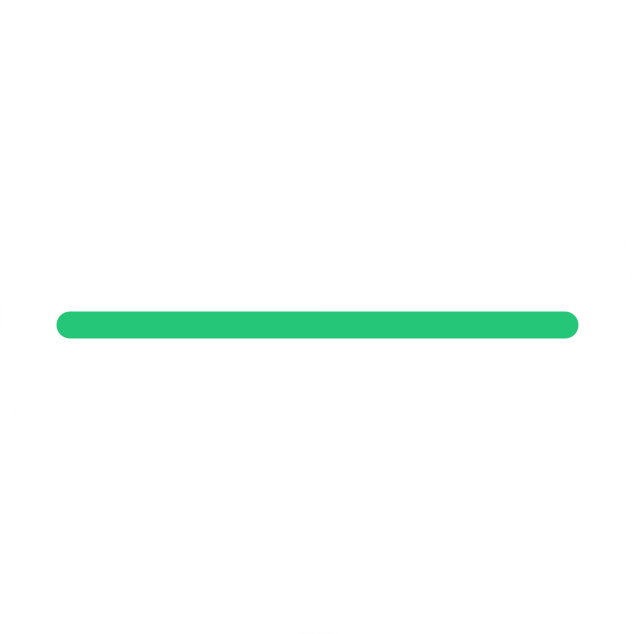

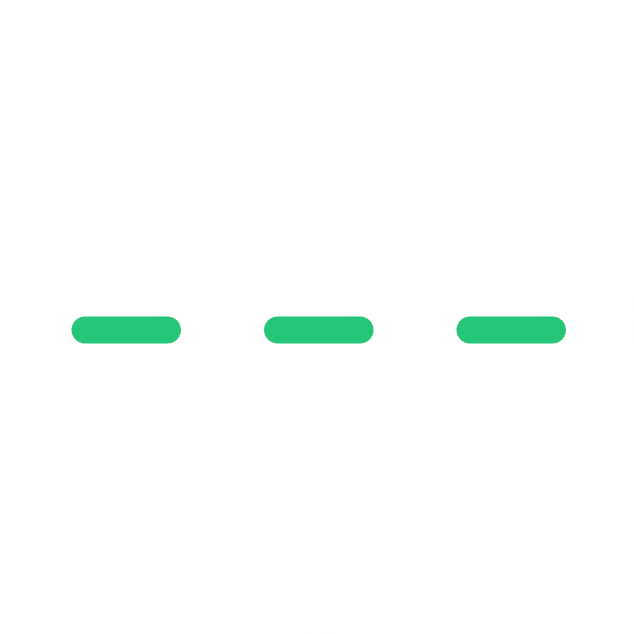

Line

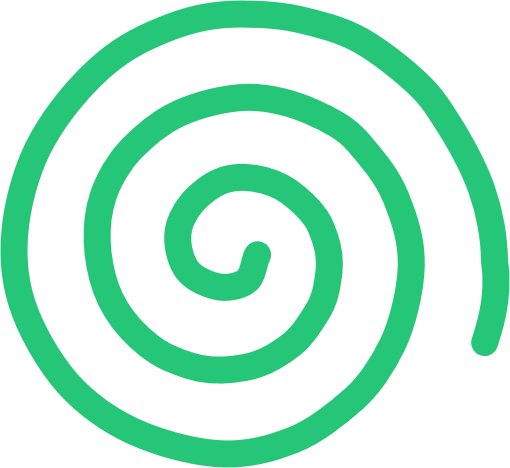

Spiral
Texture

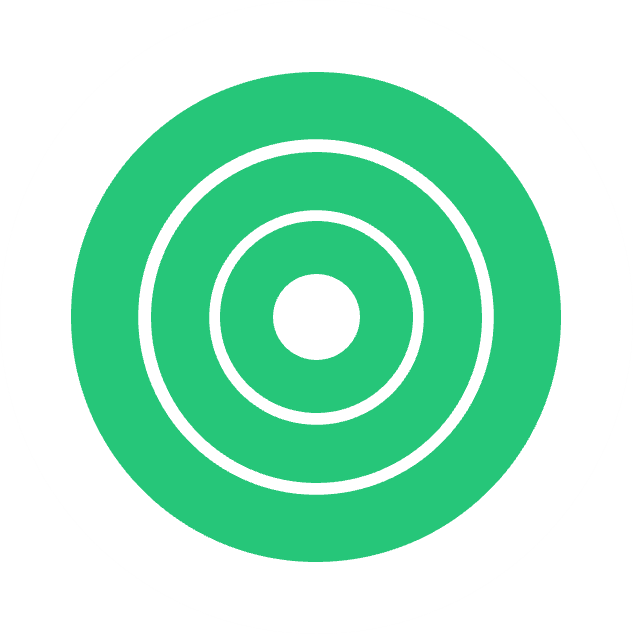

Ring

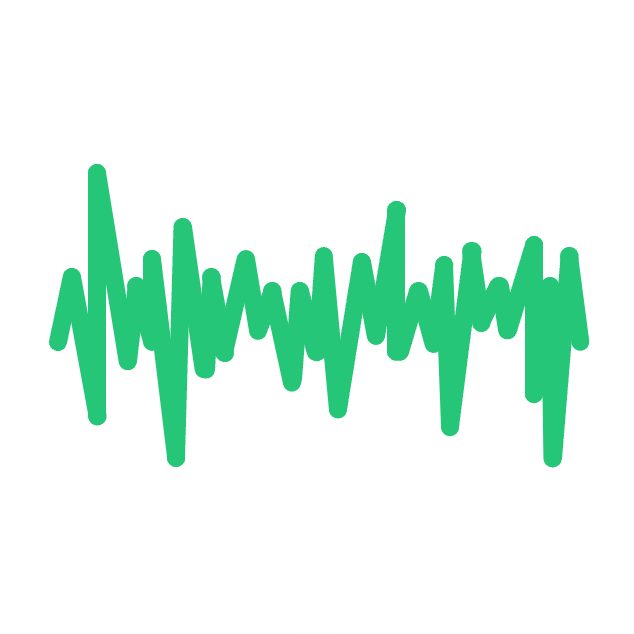

Random

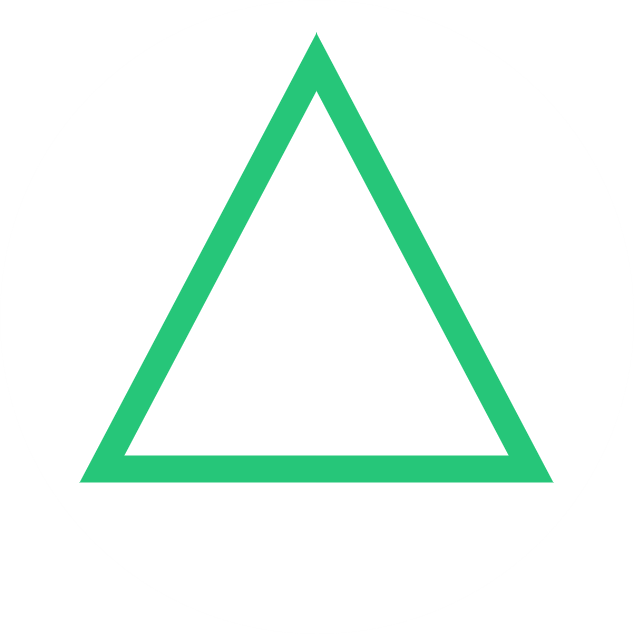

Triangle

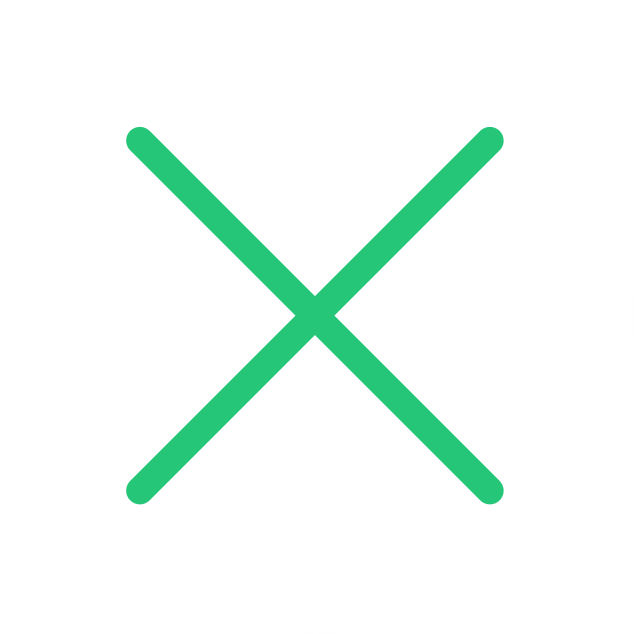

X Mode

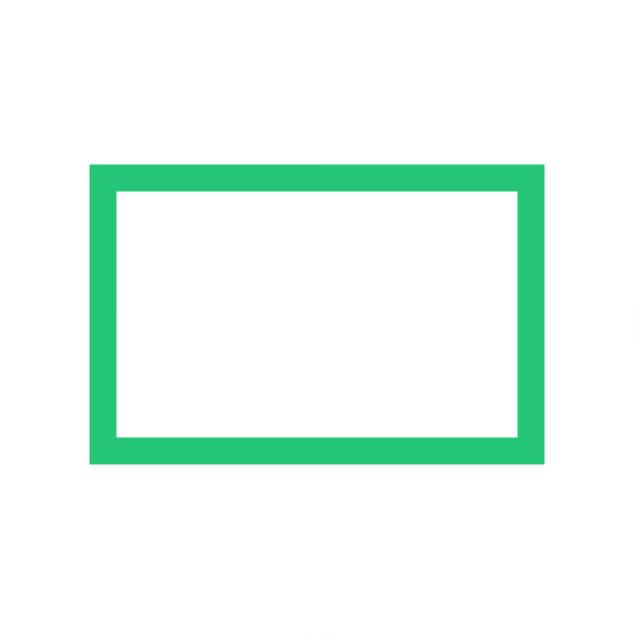

Rectangle

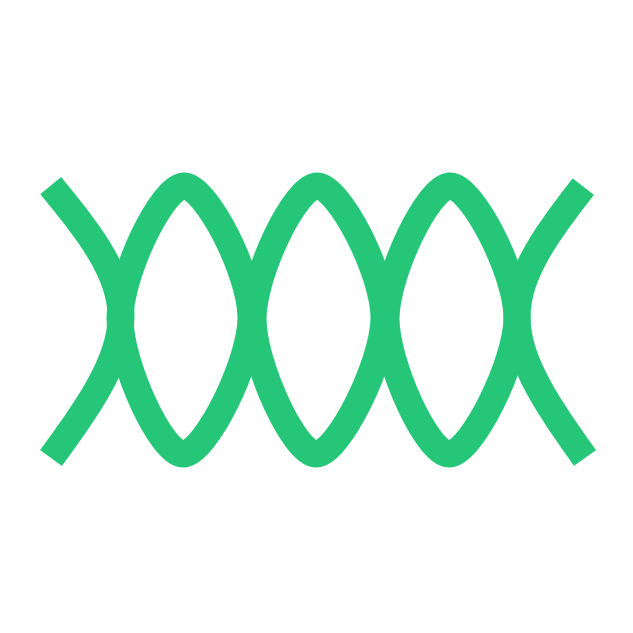

Shapes

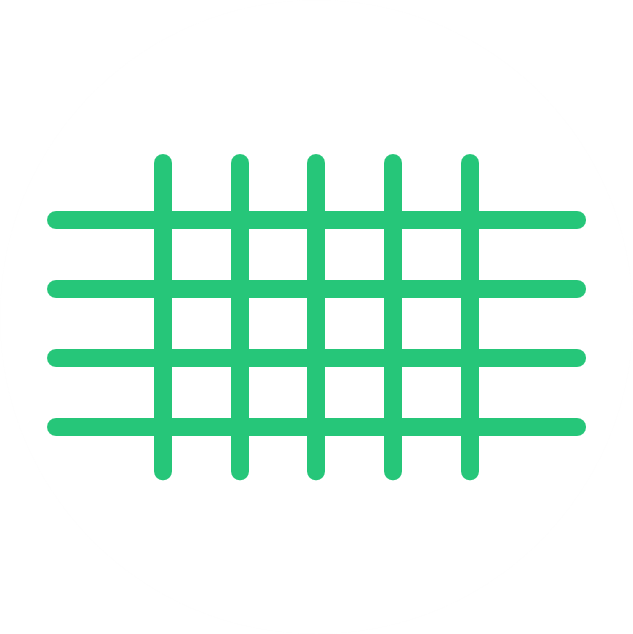

Reseau

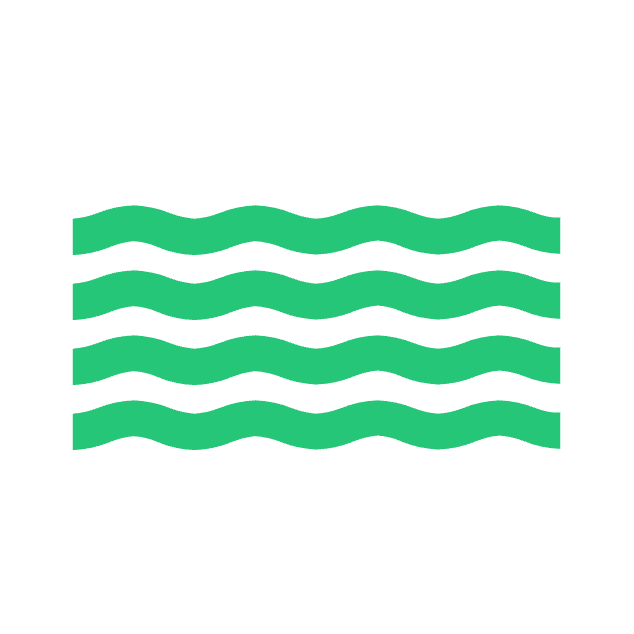

Wave

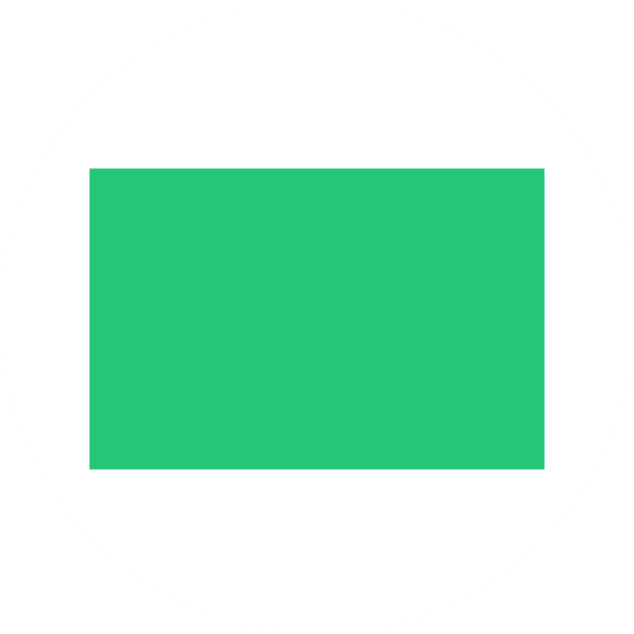

Rect Block
